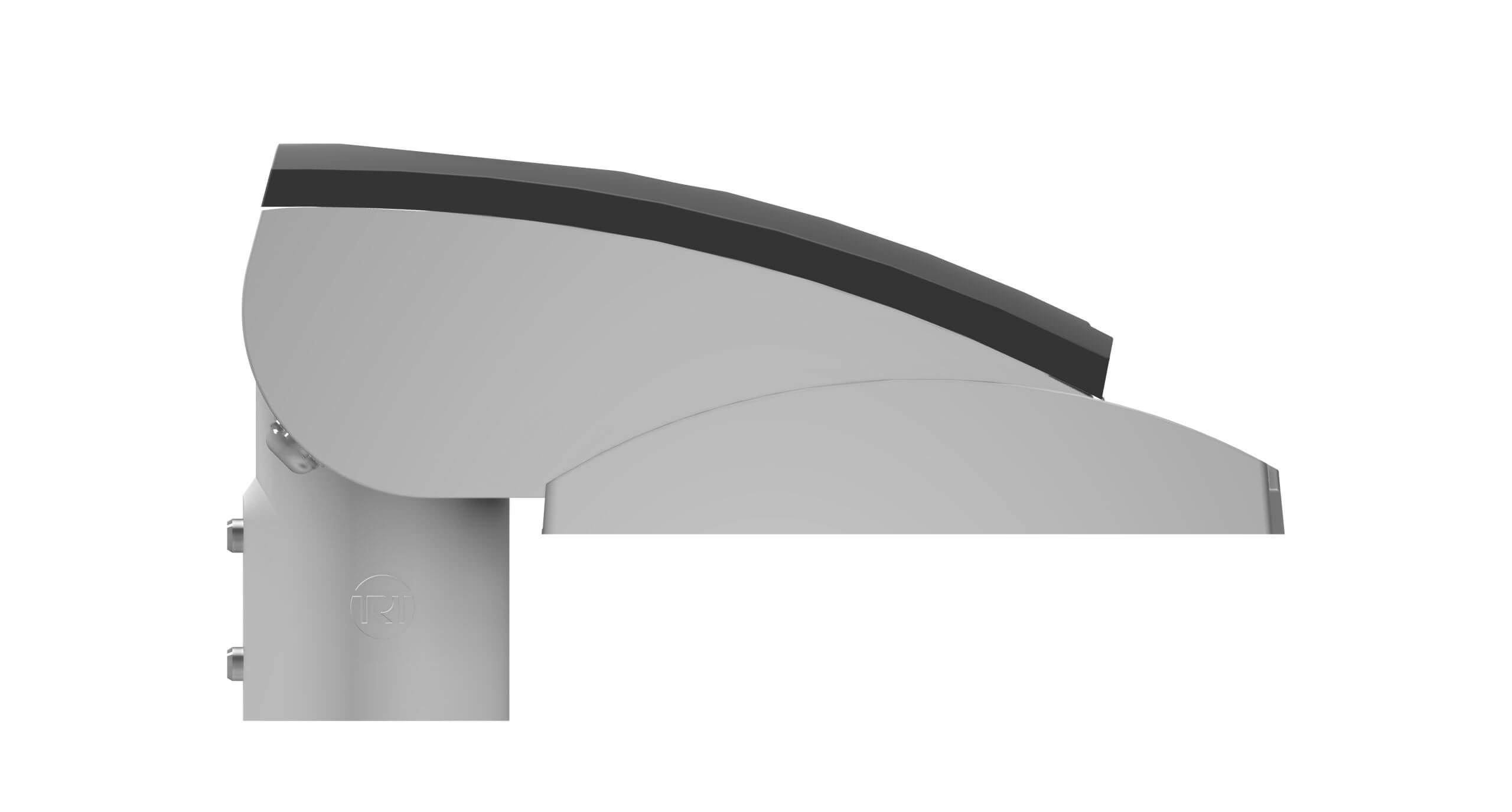

Aspect Mini

The Aspect Mini is the result of continual feedback, design and development that has been required to suit the UK residential road lighting market. The cost effective and compact style, universal mounting mechanism and performance driven features of the Mini allows its installation on virtually any existing residential lighting point. With a choice of LED colour temperatures, a selection of dedicated residential lens distributions, a universal shield arrangement (which can be easily retrofitted on site) and the field adjustable PowerSet and PowerSet Pro feature, the Aspect Mini is the single solution to any residential application.

Powerset

Physical, on-site, integral power adjustment within lantern negating the need for any reprogramming device(s)

International Dark-Sky Association approved.
Compliant when using a colour temperature of 3000K or below at zero degree tilt

SPECIFICATION

Ingress Protection Rating

IP66 Ingress Protection

Impact Protection Rating

IK10/IK08 Impact Resistance

Weight

4.2 kg Weight

Wind Area

0.0352 m² Wind Area

Electrical Class

I Electrical Class

Minimum Ambient

-20°C Minimum Ambient

Maximum Ambient

45°C Maximum Ambient

Light Source

LED Light Source

PHOTOMETRY

Lighting Reality Logo

TRT Lighting supports, promotes and uses Lighting Reality for all road lighting calculations. Our complete photometric database is available for use within this industry standard lighting design package which is available for download from www.lightingreality.com.
