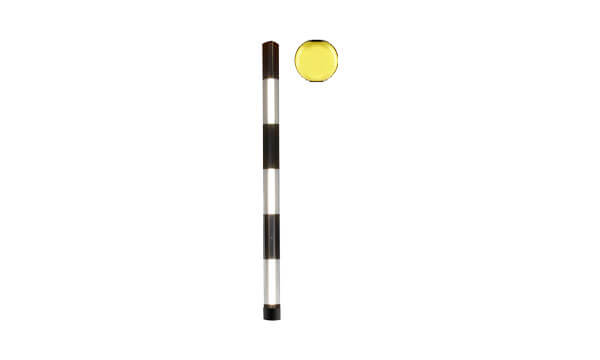

Crossafe Mid

The CROSSAFE MID is an LED illuminated pedestrian crossing post that has a beacon situated mid-way and allows the installation of a street light on the top. As a result of the crossing and street lighting posts sharing a base, street congestion is reduced.

Comprising of a purpose designed extra low voltage LED lighting unit and driver with built-in beacon synchronised flash circuitry (flash rate 40 flashes per minute). A two-piece, tough UV-stabilized beacon globe that complies with BS8442:2022 is designed to fit around the post at the top of the white band section (standard or high visibility beacon are available).

CROSSAFE MID is supplied with a secure infrared remote handset, which is used to adjust the brightness of the high visibility arrays from street level, without having to access the beacon. (7 dimming levels are available).

Adjustable white band brightness, using a secret magnetic switch, provides enhanced daytime visibility which automatically dims at night.

Compatible with: ZEBSTAR or ZEBSTAR+ beacons and ASPECT ZEBRA or OPTIO MIDI ZEBRA street lights

SPECIFICATION

Ingress Protection Rating

IP65 Ingress Protection

Impact Protection Rating

Vandal Resistance

Synchronised Flash

Synchronised Flash

Light Source

High Efficiency LEDs Light Source

Lead Length

Pre-Wired 5m Lead

Power Source

24V Power Source

DOCUMENTS

PHOTOMETRY

For photometric data, please email photometry@trtlighting.co.uk
